RTD1000 High-Performance Temperature Sensors
The RTD1000 series, Resistance Temperature Detector, is a high accuracy temperature sensor designed for use with our multipoint airflow instrumentation and the °C Port family of data acquisition instruments. RTD1000 augments high-accuracy air velocity measurement with precise temperature measurement in a single test setup. It is ideal for thermal testing of electronic components and assemblies. Engineers use the RTD1000 to measure temperatures of heat sinks, semiconductors, and circuit boards, while simultaneously measuring airflow, to characterize thermal conditions in electronic systems and enclosures.
The RTD1000 platform offers a choice of sensor head styles for air and gas stream measurement as well as surface temperature measurement. Core temperature sensing is done with a platinum RTD element, and sensing elements are connected to 5 meters (16.4 ft) of cable, terminating with a convenient USB connector to plug directly into °C Port data acquisition hardware or a PC.

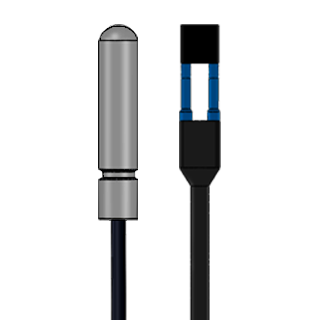

Sensor Head Options
Choice of sensor head styles for
insert or surface mount
Aggregate Your Sensor Data
AccuTrac™ software collects multiple points of temperature, air velocity, humidity, and altitude (or barometric pressure) data in real-time.
Multi-Channel Data Acquisition
Connect over 100 sensors to the °C Port family of data acquisition instruments
Measurement accuracy optimized for
temperatures between 0 °C and 100°C.
Configure & Buy Now

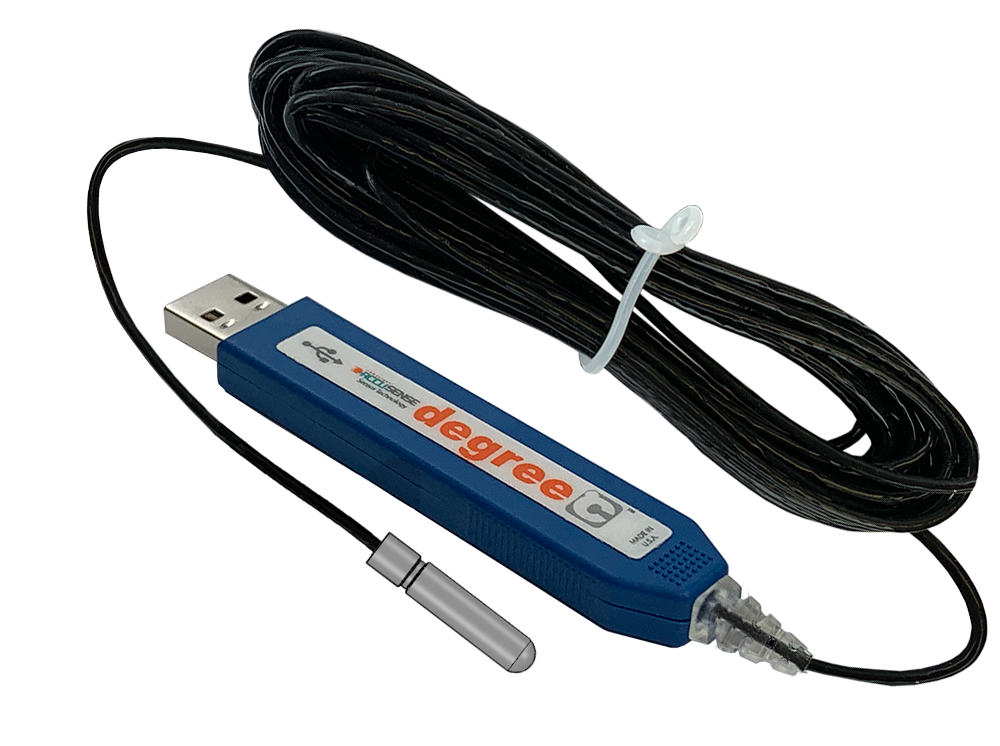

Air temperature measurement
A stainless-steel housing protects the sensing element of this insert RTD sensor probe for air or gas streams.
Specifications & Details
- Sensing Element: Class B Platinum RTD Element
- Calibration Range: 0 to 100°C (32 to 212°F)
- Accuracy: ± 0.1°C
- Relative Humidity: 5-95% (non-condensing)
- Supply Power: Supplied by °C Port Instrument or USB
°C Port SeriesMeasure up to 12 or 36 points of air velocity, temperature and humidity with Ethernet or Wi-Fi connectivity
AccuTrac™ SoftwareCollects data in real-time and displays, saves, reviews, graphs, and prints without export to another program

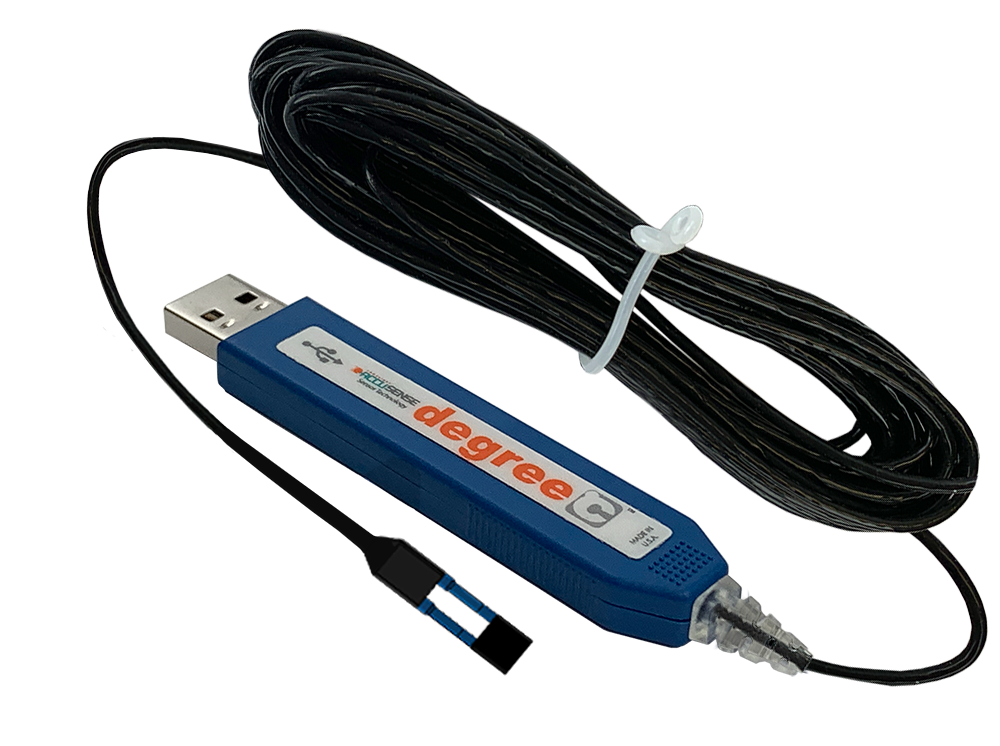

UAS1000Precise, easy-placement sensors designed for single or multi-point measurements in a variety of applications
