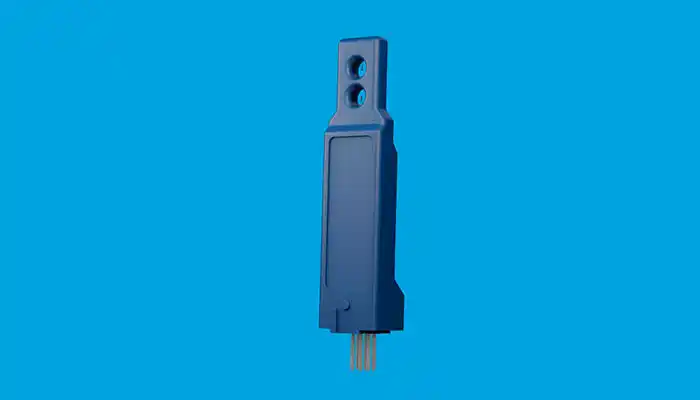

F660/F662 Vertical PCB Board-Mount Digital Airflow Sensor
Smallest footprint sensor on the market
Less than 20mA power consumption
Dual sensing element with protective shroud
Provides fully linearized air velocity and air temperature with wide operating range
Up to 5% Accuracy & Repeatability
Available flow learning command for accuracy optimization, post-soldering
Digital UART or I²C Communication
Alarm output option available for switch style operation
Specifications & Details
- Designed for 2RU & Vertical Profile Electronics
- Designed for Wave Solder Systems
- Velocity Range: 0.15m/s – 20.0m/s (30fpm – 4000fpm)
- Response Time: 400 ms
- Input Voltage Range: 5 – 24 VDC
- Digital Output: 3.3 VDC UART or I²C
- Optional Alarm Output
