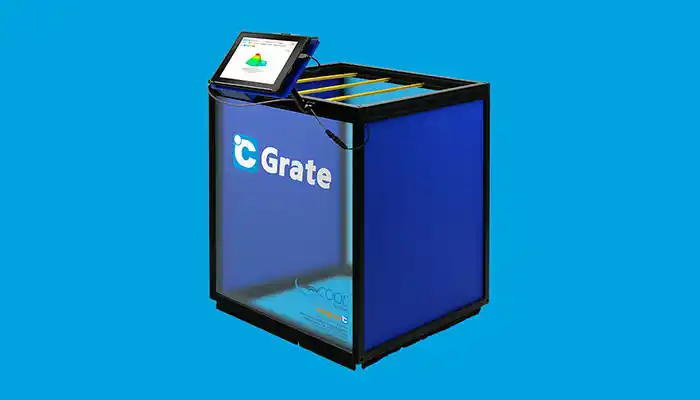

c grate volumetric airflow measurement

Why Choose the °C Grate?

Fully-configurable sensor pole array system for planar air velocity and temperature measurement – replete with data collection software. This portable sensor assembly is designed for quick testing of cool airflow over perforated tiles in data center aisles.

Quick Assembly

Effortlessly assemble the °C Grate in under 30 minutes

°C Grate vs Balometer

With a zero-impedance measurement architecture, the °C Grate™ does not impart any back pressure to a floor tile during testing.

c grate vs balometer

Specifications & Details

  • Velocity Accuracy: 5% of reading or ±0.05 m/s (whichever is greater) *within compensation range
  • Repeatability: ±1% of reading (under identical conditions)
  • Temperature Accuracy: ±2°C (3.8°F)
  • Velocity Range: 0.3 – 5.0 m/s (50 – 1000 fpm)
  • Velocity Resolution: 0.1 m/s (1 fpm)
  • Volumetric Range: 80 – 4200 m³/h (50 – 2500 cfm)
  • Volumetric Resolution: 1 m³/h (1 cfm)

Downloads

Datasheet

Video
