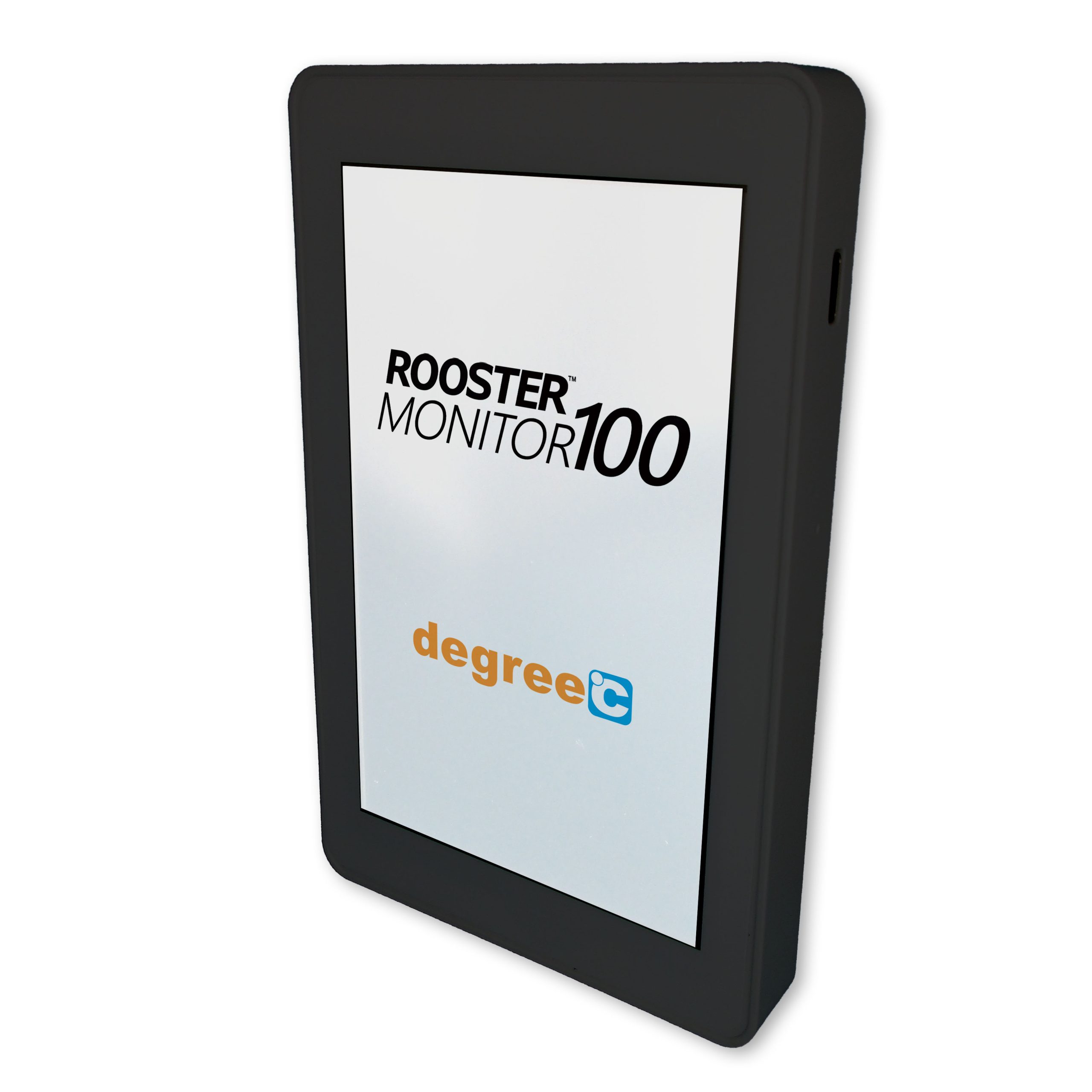

Rooster™ Monitor100

rooster monitor100

Why Choose the Rooster™ Monitor100?

The Rooster™ Monitor100 is the next-generation airflow monitoring and alarm system for critical containment applications, including chemical fume hoods, biological safety cabinets, laminar flow hoods and other applications where airflow is required to be viewed, monitored, alarmed, logged and communicated to building and laboratory systems.

Responsive Touch

Built for laboratory professionals, the built-in LCD screen of the Rooster™ Monitor100­ works with or without gloves.

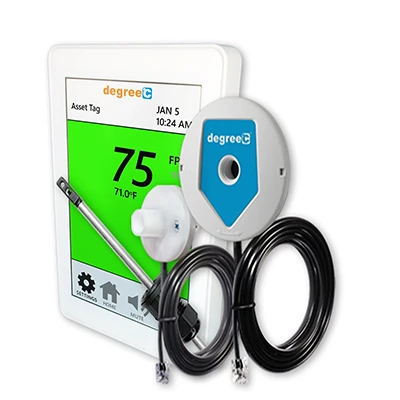

Multiple Sensor Options

Accepts side-flow sensor for negatively pressurized cabinets, insertion probe for exhaust ducts and inline retrofit design to replace legacy airflow alarm monitors.

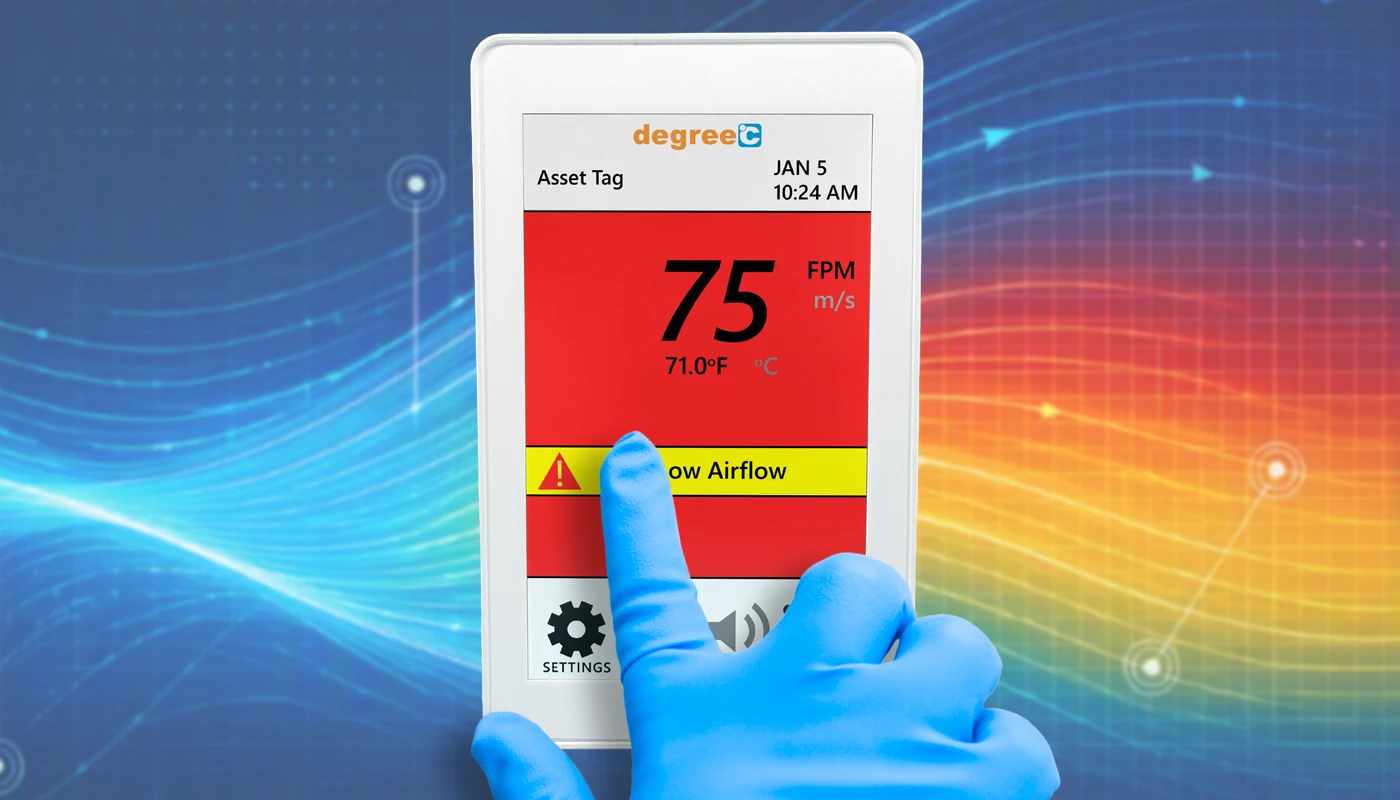

Dynamic Alarming

Whole-screen background colorization to convey current state, and critical safety alarms are augmented by flashing red LED while in the alarm state.

Enhanced Security

Dual password protection allows users to personalize operational experience, but not override safety features set by facility managers.

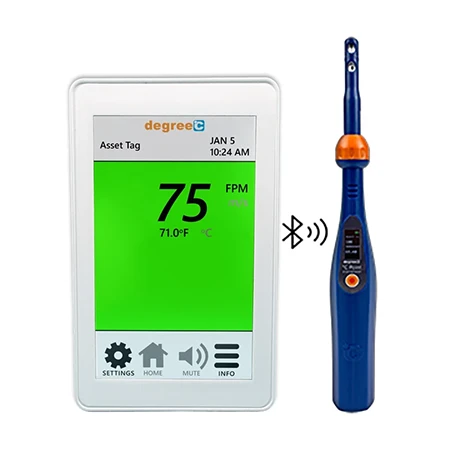

Automatic Cabinet Calibration

Supports automated entry of face velocity measurements from a certification sensor.

Fast Intuitive Setup

The video guide below will get you from boot-up through the initial calibration procedure.

Easy Upgrade Procedure

USB port allows for in-the-field firmware updates to protect your investment.

Specifications & Details

Features

  • Glove-friendly, color touch panel display
  • Accepts side-flow sensor for negatively pressurized cabinets, insertion probe for exhaust ducts and inline retrofit design to replace legacy airflow alarm monitors
  • Instrumentation-class sensor, compatible with latest NSF requirements for repeatability and high accuracy calibration
  • Full temperature compensation built-in for accuracy across wide operating temperature range
  • Whole-screen background colorization conveys current state, augmented by flashing red LED while in alarm state
  • Volume and tone control
  • Wide velocity range for use in face-velocity or duct-velocity applications
  • Air temperature sensing included and displayed on-screen
  • Dual password protection allows users to personalize their operational experience, but not override safety features set by facility managers
  • Fast and intuitive set-up, with no need to have manual on hand
  • In-the-field firmware updates, import/export of user preferences, and download of event logging via USB connection

Specifications

  • Supply Voltage:  24VAC/DC or approved wall adapter
  • Air Velocity Range: 0.15 – 20.0 m/s (30-4,000 fpm)
  • Velocity Repeatability:  1% (NSF 49 Requirement)
  • Response Time:  < 1 Second
  • Adjustable Alarm Volume:  0 – 85 dB
  • Compliance Standards:  CE, RoHS
