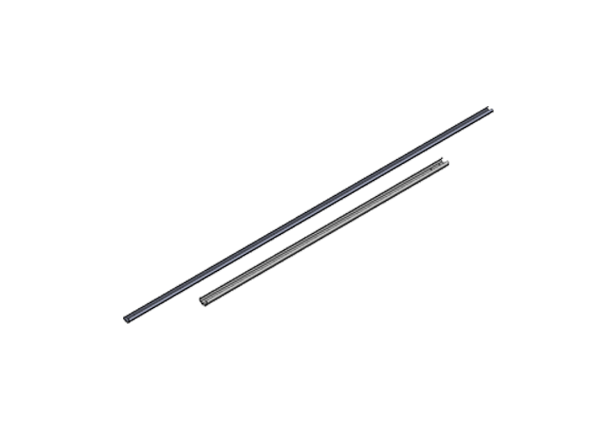

C Rail Extrusion Lengths

°C Rail Sensor Array

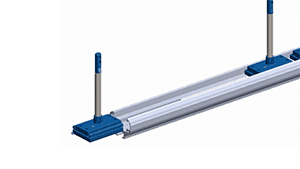

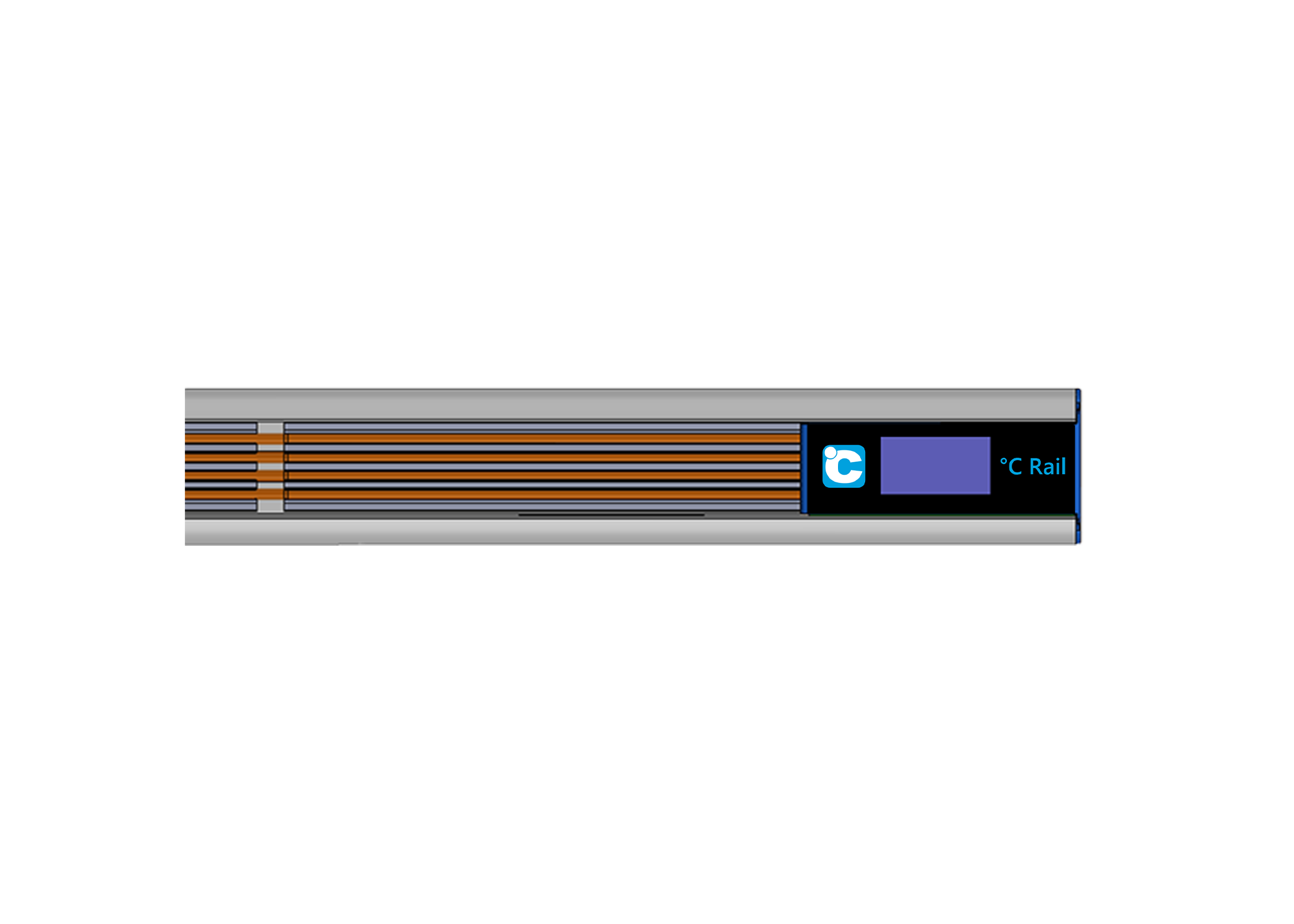

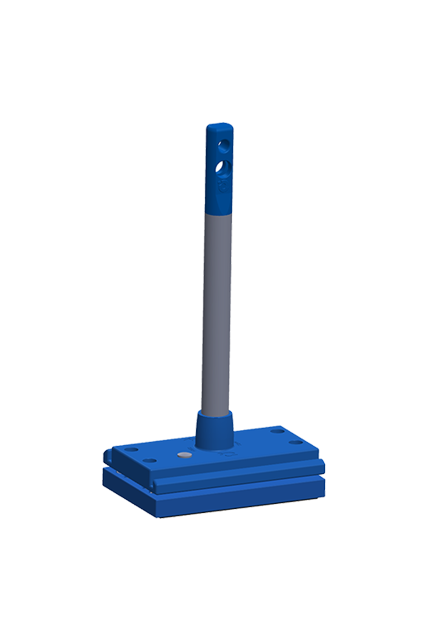

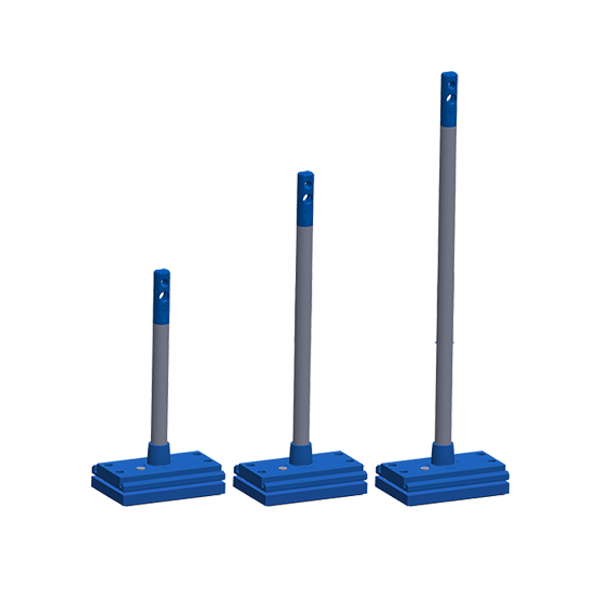

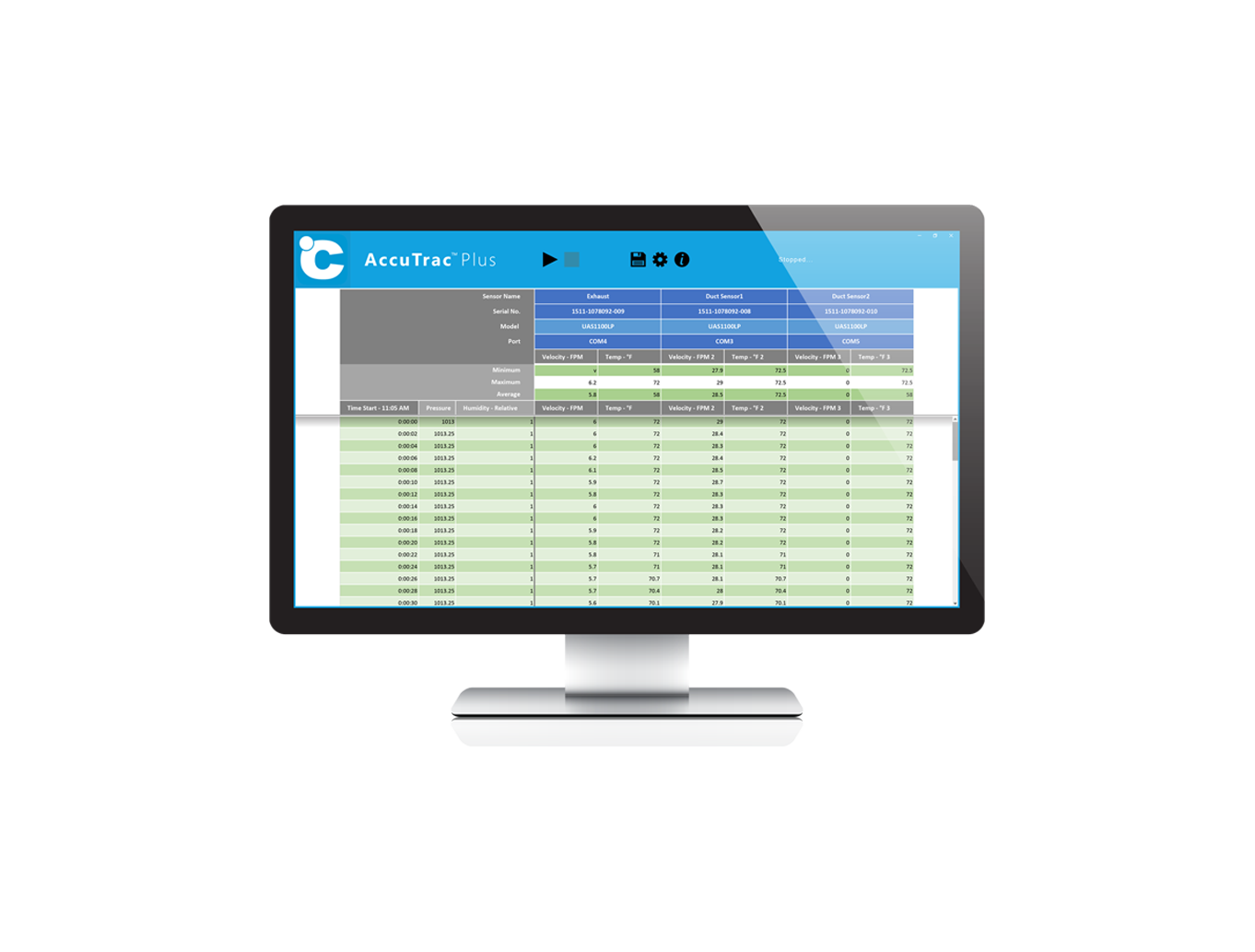

The °C Rail is an airflow measurement array system with sensors that slide within a rail extrusion to accommodate different measurement locations. A complete °C Rail system consists of a °C Rail Module, sensors, and AccuTrac datalogging software. A rail extrusion with built-in communications hub, the °C Rail Module is available in 1m (3.3′) and 2m (6.6′) sections and accepts up to 12 probe-style air velocity and temperature sensors. °C Rail sensors are configurable to meet customers exact needs with choices for velocity range from 0.15 – 20m/s (30 – 4000 fpm) and probe length from 76 – 178mm (3” to 7”). Each sensor installed in the °C Rail requires an AccuTrac channel. AccuTrac is a licensed software sold by the channel, or sensor, count.

Specifications & Details

  • Velocity Range: 0.15 m/s to 20 m/s (30 fpm to 4,000 fpm)
  • Laboratory-grade compliance with 3% velocity accuracy
  • Operating Temperature: 0 to 70°C (32 to 158°F)
  • Mounting: ¼”-20 square nuts are provided to mount the rail extrusion.
  • Power: The °C Rail Module includes an 18W AC/DC wall mount adapter power supply.
  • Communication: The °C Rail Module includes a 5m (16.4’) USB 2.0 Cable, Type-A Male to Type-C Male

Downloads & Media

Datasheets

Manuals
