Rooster Sensor100
Why Choose the Rooster Sensor100?
The Rooster Sensor100 is a next-generation air velocity and temperature sensor with a built-in touchscreen display for configuring alarm set points and output behavior. Using an instrumentation grade sensing element, the Sensor100 comes calibrated and ready to deploy. With its user-friendly, color touch-screen interface, the Sensor100 can be set-up into your building or system with unprecedented ease.
SKU: TC550021
Responsive Touch
Built for laboratory professionals, the built-in LCD screen of the Rooster Sensor100 works with or without gloves
Enhanced Security
Dual password protection allows users to personalize operational experience, but not override safety features set by facility managers

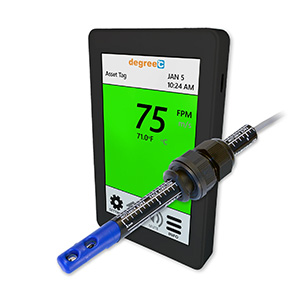

Probe Style Sensor
Easy-to-install, single-hole mounting procedure with no need for hands inside the duct. Available with either a gland or clamp-style fitting.
Easy Upgrade Procedure
USB port allows for in-the-field firmware updates
Specifications & Details
Features
- Glove-friendly, color touch panel display
- Whole-screen background colorization to convey current state, augmented by flashing red LED while in alarm state
- Instrumentation-class sensor with NIST traceable calibration
- Comes pre-calibrated with probe-style sensor
- Full temperature compensation built-in for accuracy across wide operating temperature range
- Air temperature sensing included and displayed on-screen
- Wide velocity range capability, for use in duct-velocity applications
- Volumetric flow capability for duct installations
- Fast and intuitive set-up, with no need to have manual on hand
- Dual password protection allows users to personalize operational experience, but not override safety features set by facility managers
Specifications
- Probe Size: 287mm (11.3 in) with 3.7m (12‘) cable
- LCD Display Area: 57 mm x 70 mm (2.30 in x 2.7 in)
- Air Velocity Range: 0.15 – 20.0 m/s (30-4,000 fpm)
- Velocity Repeatability: 1%
- Response Time: < 1 Second
- Supply Voltage: 24 VAC/VDC & Wall Adapter
- Alarm Volume: 0 – 85 dB (Adjustable)
- Relative Humidity: 5 – 95% (Non-Condensing)
- Operating Temperature: 5°C – 60°C (40°F – 140°F)
- Storage Temperature: -40°C – 85°C (-40°F – 185°F)
- Compliance Standards: CE, RoHS
